Danish Seed Processing

Indented cylinder


Indented cylinder

The indented cylinder serves the purpose of precise separation of cereals and seed by length.

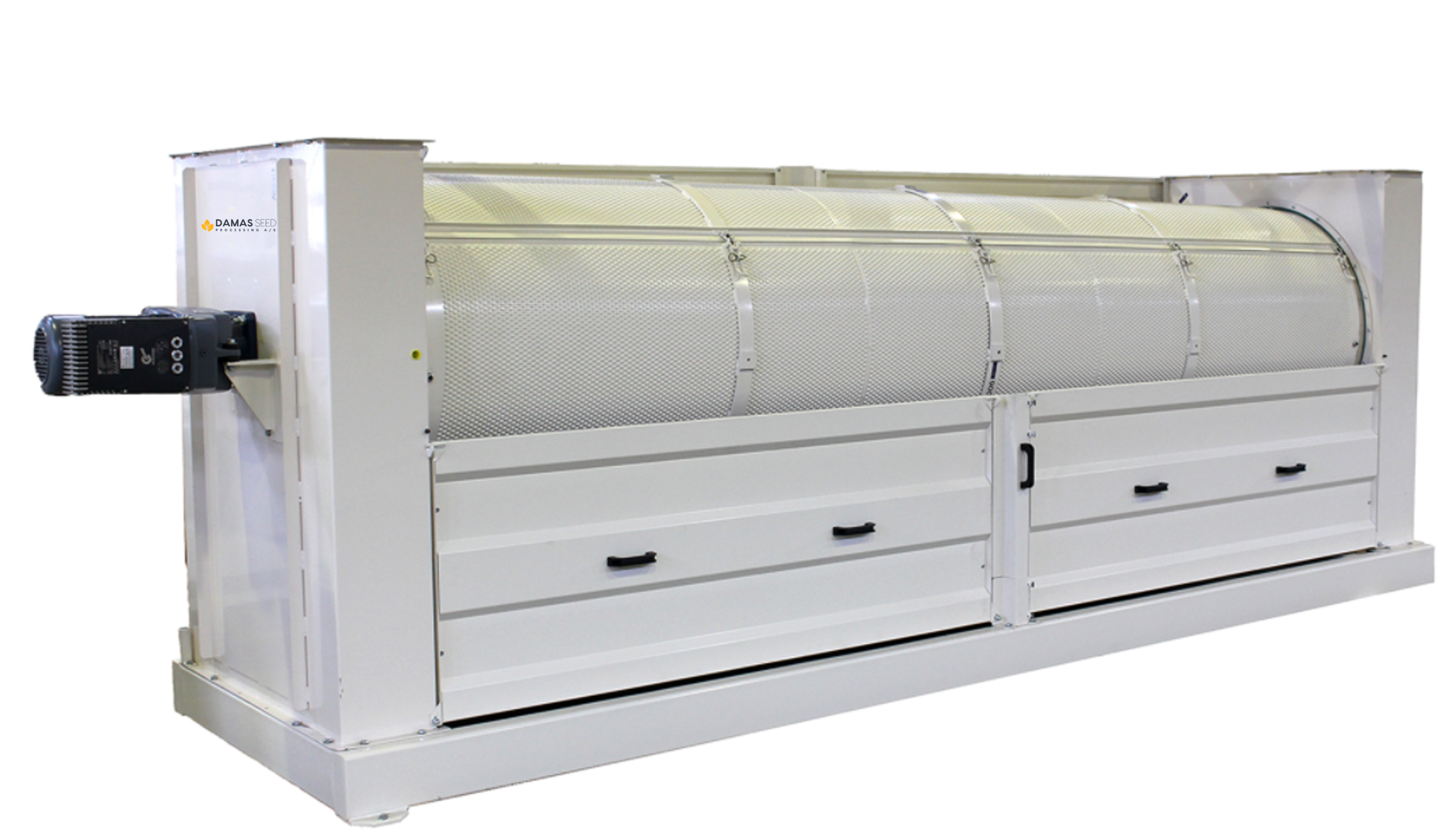

The DAMAS HOTYP is a highly efficient separation machine designed to sort grains or seeds by length. Due to the unique geometry of the indentations in the covers, you can rely on DAMAS HOTYP to deliver extremely precise length separation which will help you maximise the amount of broken seeds removed from your crop.

DAMAS HOTYP indented cylinder machines are designed to precisely separate cereals and seeds by length (short or long).  It is designed for industrial use with a highly flexible modular system. The machine can be fitted with a built-in two-way distributor in the outlet module for change-over of short and long material.

The DAMAS HOTYP is designed to make sampling during operation easy and safe. You can also connect the DAMAS HOTYP to aspiration for 100 % dust-free operation.


How Indented Cylinders work

The indented cylinder is fitted with covers with indentations that catch whole seeds/grains and discard broken ones. The short grain cylinder is provided with a stirrer for efficient separation, and the long grain cylinder is provided with optimizer for optimum exploitation of the covered area. If you need both short and long grain separation, two cylinders can be located over each other so that the material is first short-grain separated in the upper cylinder and then long grain separated in the lower cylinder.

The Hotyp can be delivered with an optional electronic control of the trough.
